Elevated Post Base

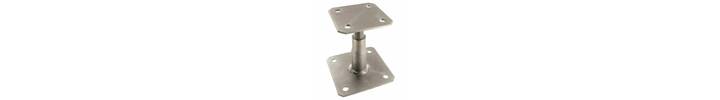

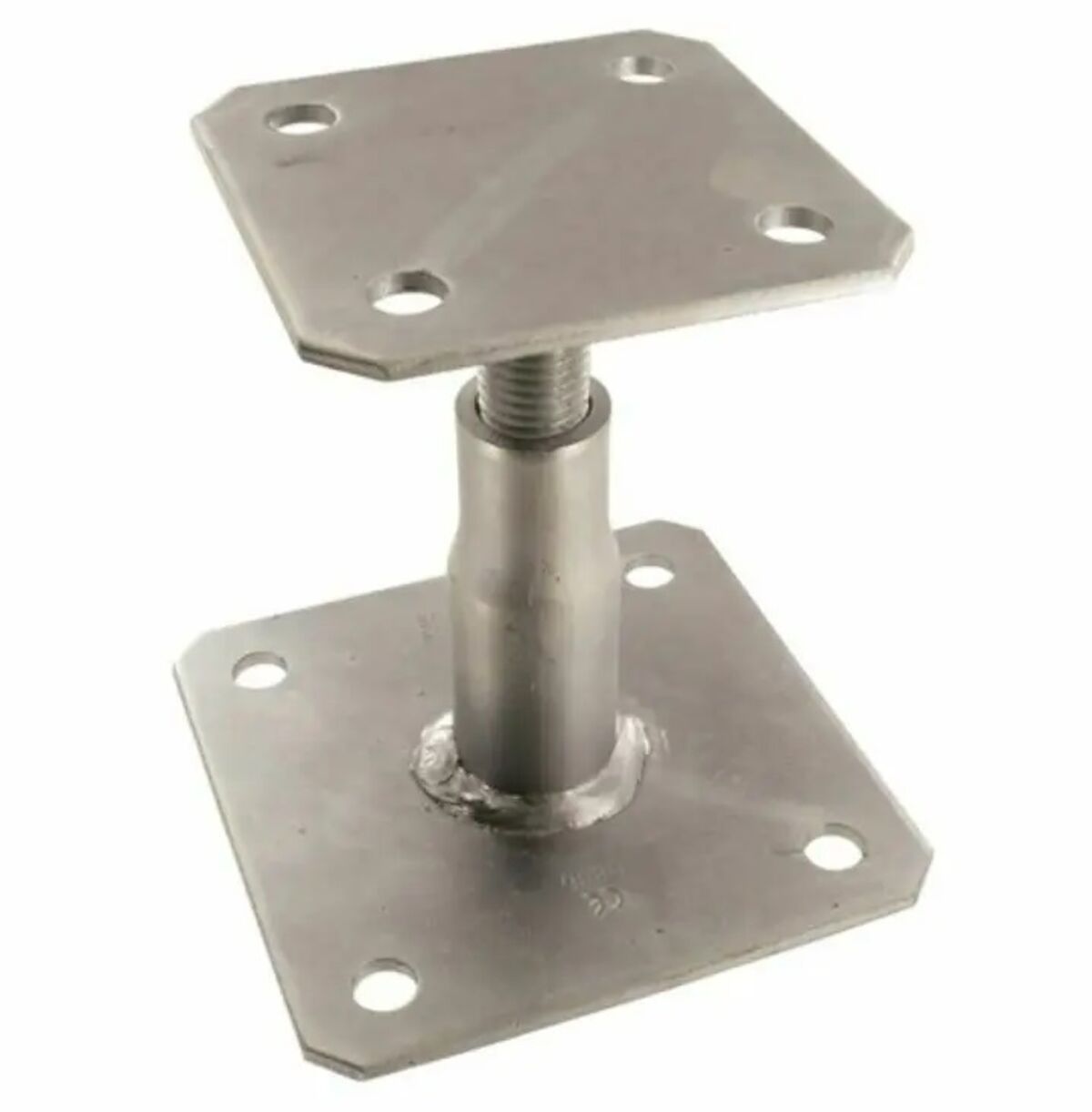

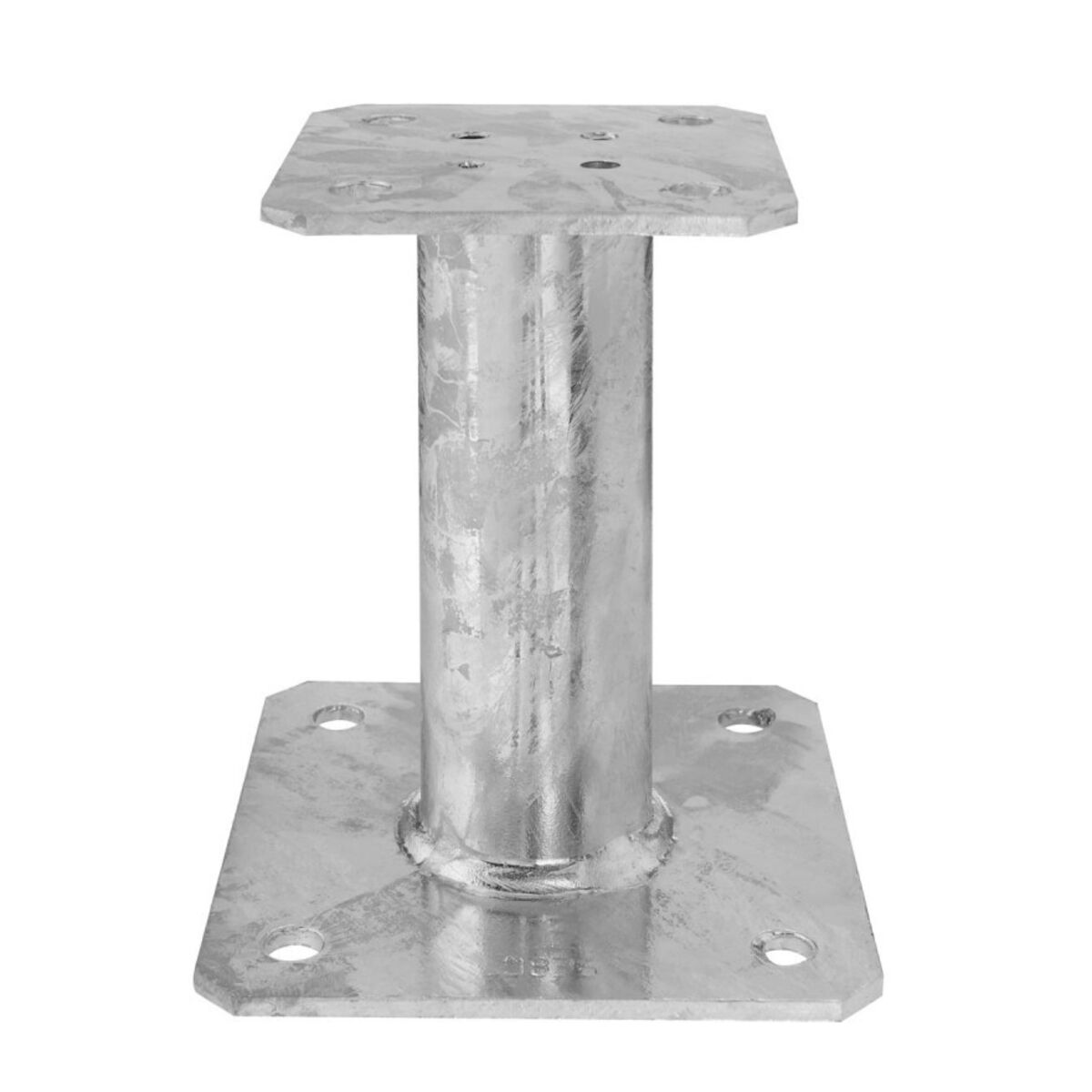

Pre galvanised elevated post base 100mm used for post base installations requiring a higher stand off distance like pergolas, verandas, garden furniture, awning posts, solid and glulam structures. Adjustable version features a post mounting plate on a screw allowing it to be adjusted to a specific standoff height ranging from 100-150mm. Suitable for post sizes 100 x 100mm to 200 x 200mm.

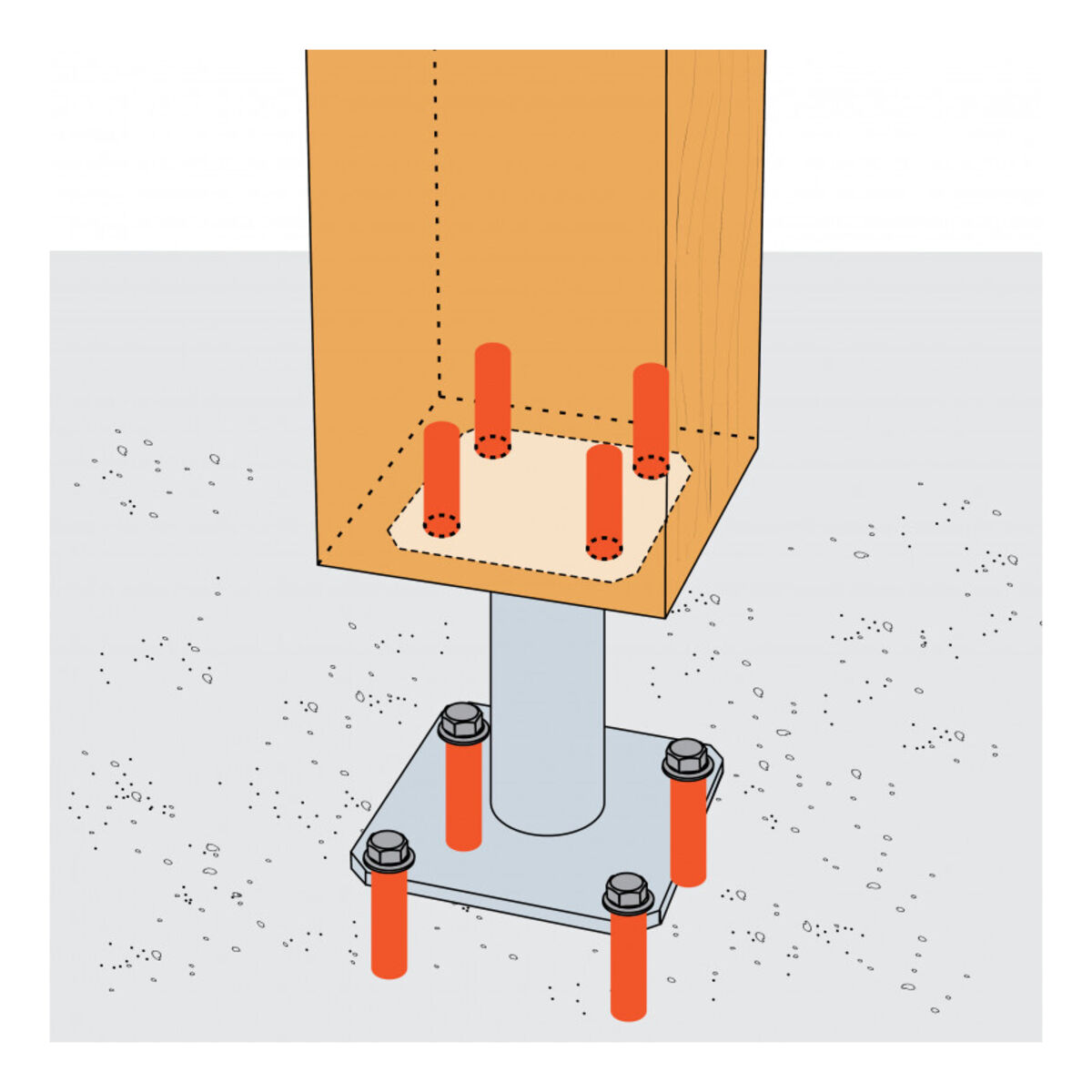

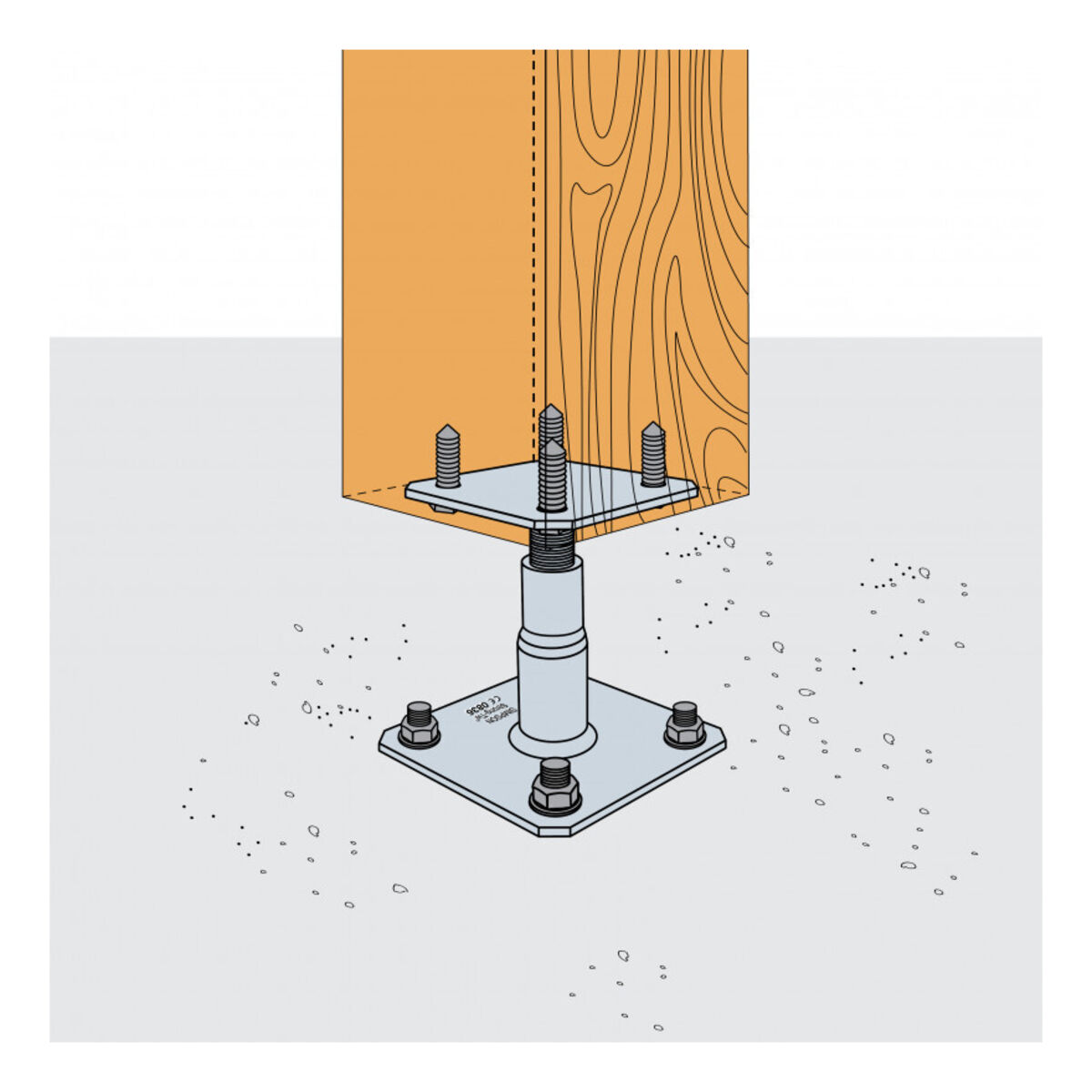

Installation

  • Fix to the foundation with concrete screw/mechanical anchor or resin anchor system.
  • Adjust to the required stand off height (if using adjustable base)
  • Fix post to top plate using M10 coach screws
  • Not recommended when the top of post/column not restrained (eg. fence post)
